Introduction to the 8051 Microcontroller
The 8051 microcontroller is one of the most popular 8-bit microcontrollers in the world. Originally developed by Intel in 1980, it has become a standard in embedded systems design. Even decades later, engineers and students still rely on the 8051 microcontroller for learning, prototyping, and low-cost product development.
As an 8 bit microcontroller, the 8051 can process 8 bits of data at a time. This makes it simpler than modern 32 bit microcontrollers, but also more predictable and easier to program. While newer devices like the AVR microcontroller and ARM-based boards have taken over many markets, the 8051 remains a foundational learning tool.
History and Background
The 8051 microcontroller was introduced by Intel in 1980 as part of the MCS-51 family. It quickly gained popularity for its simplicity, robust design, and ease of programming in assembly and C. Early adopters included industrial control, instrumentation and consumer electronics. Companies still rely on audit microcontrols and they still rely on the variations of 8051 based controllers.

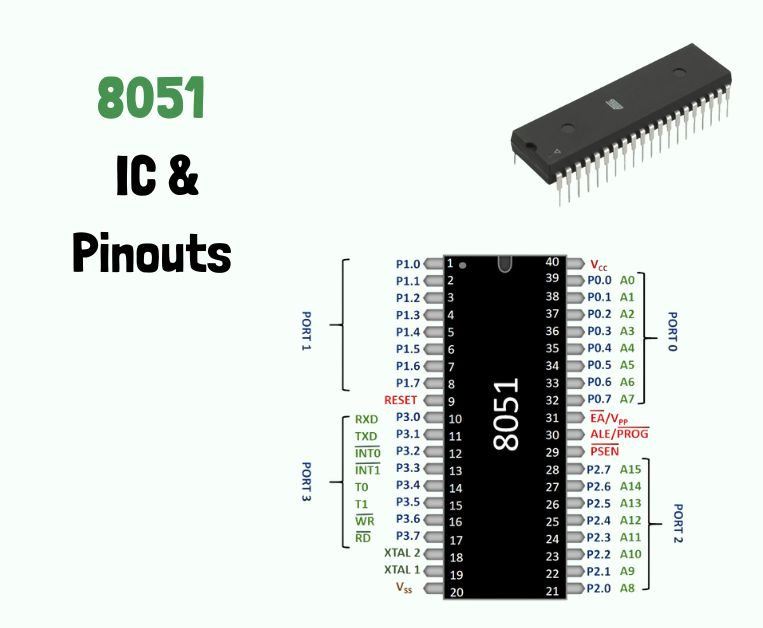

8051 Microcontroller Architecture Overview
The 8051 microcontroller architecture consists of:
- Central Processing Unit (CPU): Executes instructions.
- RAM (128 bytes)): Temporary storage for variables.
- ROM/Flash): Stores program code.
- 4 Parallel I/O Ports): For external interfacing.
- Timers/Counters): For precise timing operations.
- Serial Port ): UART communication.
- Interrupt System): Handles priority-based events.

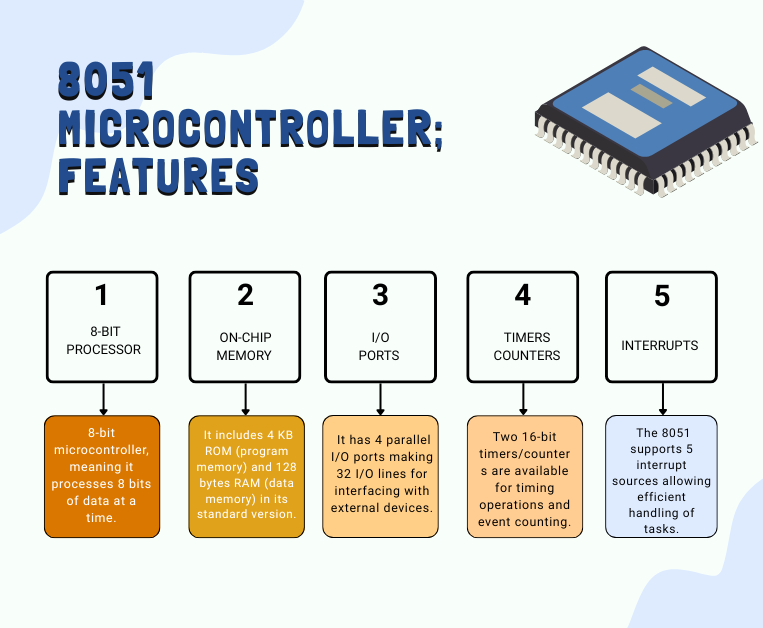

Key Features of the 8051 Microcontroller
- 8-bit data processing for simple applications.
- On-chip oscillator for timing.
- Multiple addressing modes for flexibility.
- Bit-level operations for control systems.
- Low power consumption compared to larger processors.
How the 8051 Microcontroller Works
The 8051 microcontroller works by executing instructions stored in program memory. It follows the classic fetch decode execute cycle:
- Fetches instructions from program memory.
- Decodes it to determine the operation.
- Executes the instruction and updates data registers or memory.
Since it’s an embedded microcontroller, it often runs a single dedicated application, unlike PCs which run many programs at once.
8051 Microcontroller Instruction Set and Programming
The 8051 microcontroller supports assembly and C programming. The instruction set includes:
- Data transfer instructions (MOV, XCH)
- Arithmetic instructions (ADD, SUBB)
- Logical instructions (ANL, ORL)
- Control instructions (SJMP, LJMP, CALL)
Example in C:
#include <reg51.h>
void main() {
P1 = 0xFF; // Set Port 1 as output
while(1) {
P1 = 0x00; // Turn OFF LEDs
P1 = 0xFF; // Turn ON LEDs
}
}
Types and Variants of the 8051 Microcontroller
- Standard 8051: Original Intel version.
- 8052: Enhanced with more timers and RAM.
- AT89C51 (by Atmel): Flash programmable version.
- P89V51RD2 (by Philips/NXP): Fast programming.
8051 Microcontroller vs AVR Microcontroller
The AVR microcontroller, like the AVR ATmega microcontroller, is a modern alternative with:
- Higher clock speeds.
- Increased memory.
- Better power efficiency.
While the 8051 is great for learning, the best microcontrollers for commercial use often include AVR or ARM options.
8051 Microcontroller vs 32 Bit Microcontroller
- 8051 Microcontroller: 8-bit, simple, low power, cheaper.
- 32 Bit Microcontroller: Faster, more capable, better for complex systems.
Embedded Microcontroller Applications of the 8051
- Control of industrial processes.
- Systems for home automation.
- Monitoring of pressure and temperature.
- Gadgets for security.
- Electronics for consumers.
Microcontroller Boards for 8051 Development
Popular microcontroller boards for 8051 include:
- AT89S52 Development Board.
- Keil MCB51 board.
- Low-cost DIY trainer kits.
Real-World Microcontroller Projects Using the 8051
Some popular microcontroller projects:
- Digital thermometer.
- Traffic light control system.
- Smart irrigation system.
- Energy meter.
FPGA or Microcontroller: Which to Choose?
An FPGA or microcontroller choice depends on the application:
- FPGA: Parallel processing, reconfigurable logic.
- Microcontroller: Sequential processing, simpler coding.
Microcontroller Exploits and Security Considerations
Even the 8051 microcontroller is not immune to microcontroller exploits. Reverse engineering, firmware dumping, and side-channel attacks are possible if devices are not secured.
Best Microcontrollers Today and the 8051’s Role
Microcontrollers are the backbone of modern embedded systems, powering everything from consumer electronics to industrial automation. Over the decades, the evolution of microcontrollers has shifted from simple 8-bit architectures to advanced 32-bit processors with high-speed communication interfaces, integrated memory, and low-power features.
Best Microcontrollers Today
Currently, the market is dominated by 32-bit ARM Cortex-based microcontrollers (from STMicroelectronics, NXP, Microchip, and Texas Instruments). These devices offer: High performance, low power consumption, rich peripherals, scalability and development ecosystem.
Additionally, ESP32 and ESP8266 (by Espressif) are extremely popular in IoT and smart devices because of their integrated Wi-Fi/Bluetooth, affordability, and developer-friendly environment.
The 8051 Microcontroller’s Role
When it was first released by Intel in 1980, the 8051 microcontroller was groundbreaking. It offered a cost-effective platform for control applications thanks to its integrated serial connectivity, RAM, and ROM. Some 8051 variations are still produced today due to:
Legacy systems: A lot of sectors continue to employ outdated 8051 architectures.
Cost-effectiveness: 8051 is still a viable option for simple applications that demand low cost and low complexity.
Use in education: As an introductory platform, 8051 is frequently studied by engineering students.
However, the 8051 has significant drawbacks in comparison to contemporary microcontrollers: Processing capacity, memory limitations, absence of contemporary traits and low power consumption.
Yet, from a forward-looking standpoint, the 8051 is more of a historical stepping stone than a competitive choice. Its value lies in understanding the roots of embedded systems rather than being a viable option for cutting-edge designs.
Conclusion
The 8051 microcontroller remains a legendary device in embedded systems. Its simple architecture, affordability, and educational value make it ideal for learning and small projects. Whether you’re building your first prototype or working with audit microcontrols in industrial settings, the 8051’s influence on the world of microcontrollers is undeniable.
FAQs
Q1. Does anyone still use the 8051 microcontroller?
A: Indeed, the 8051 is still in use today, mostly in low-cost applications, legacy systems, and educational settings. However, with the development of more advanced, contemporary microcontrollers, its function has decreased.
Q2. In comparison to more recent alternatives, what are the 8051 microcontroller’s drawbacks?
A: The 8051 is not appropriate for sophisticated applications because of its low processing speed, short memory, lack of built-in support for contemporary technologies like USB or Wi-Fi, and limited peripherals.
Q3. Why is the 8051 still taught to students?
A: Because it teaches students the fundamentals of microcontrollers including timers, interrupts, and assembly-level programming, the 8051 is frequently utilized in academic settings. It serves as a starting point for more complex MCUs.
Q4. Which sectors continue to use 8051 microcontrollers?
A: Because it would be expensive to rebuild or upgrade hardware, the 8051 is still used in some industrial equipment, basic control systems, and legacy products.
Q5. Should the 8051 be used to develop new projects?
A: In general, no. More computing power, less energy usage, and improved connection make ARM Cortex, PIC, or ESP32 preferable options for future designs.
Q6. How can I pick the microcontroller that will work best for my project?
A: The decision is based on your application’s needs, taking into account factors like development support, performance, power consumption, cost, available peripherals, and connectivity requirements (such as Bluetooth and Wi-Fi).
